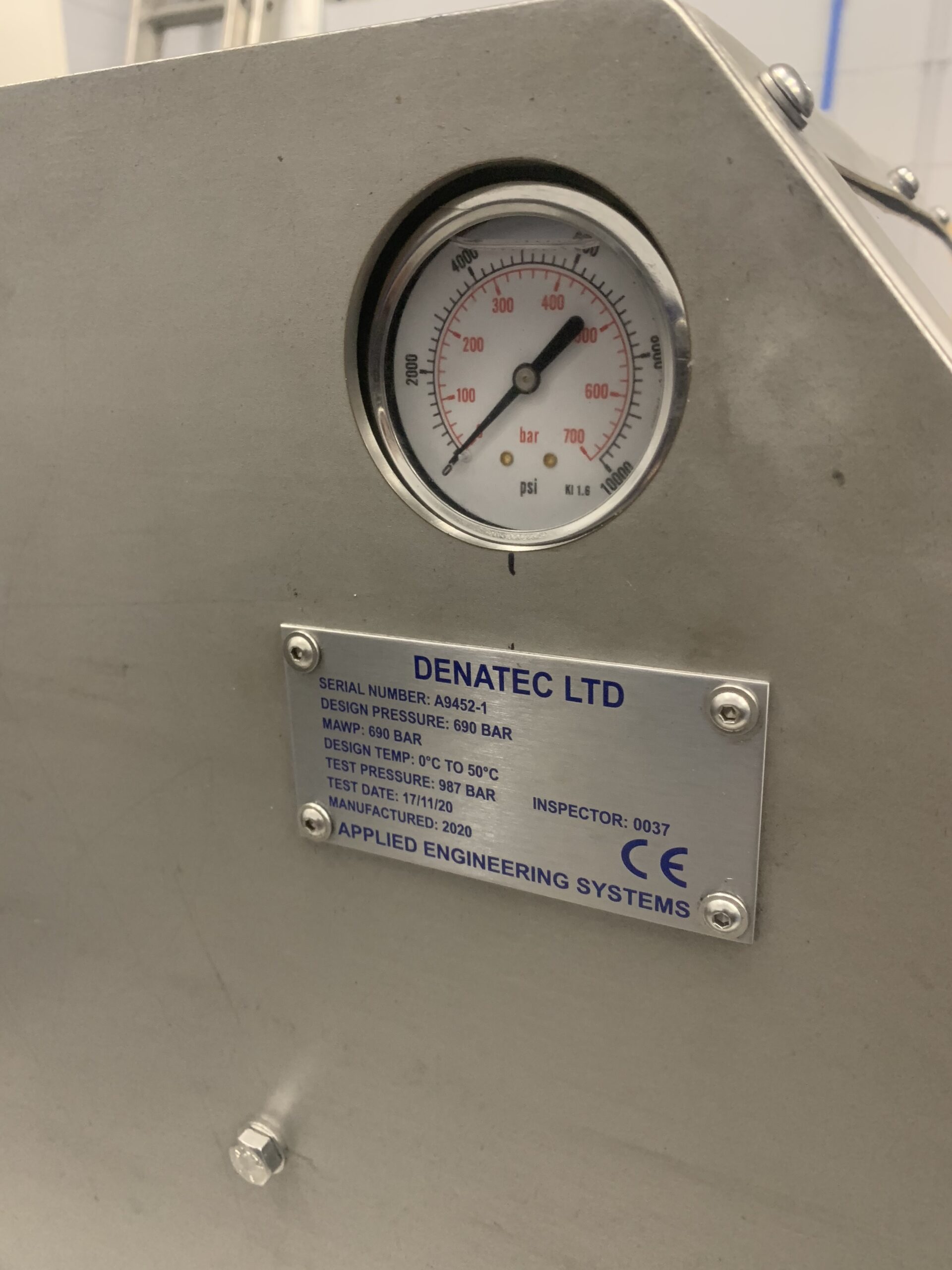

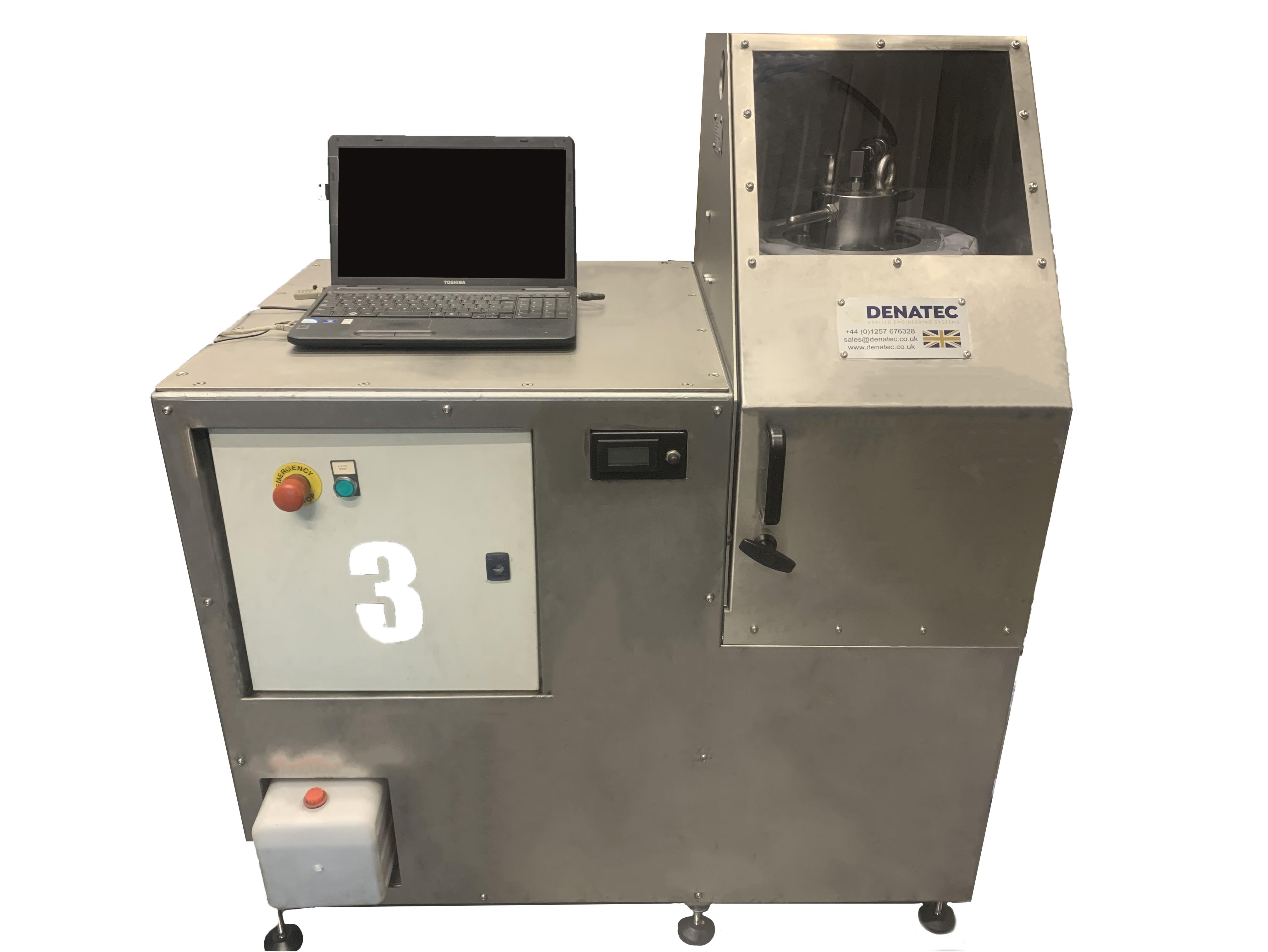

Denatec Ltd were asked to upgrade and re-certify a 690 Bar Pressure Testing System that needed bringing in-line with the latest quality and safety standards.

As well as recertifying the Pressure Vessel in-line with the Pressure Equipment Directive, further upgrades and modifications included: –

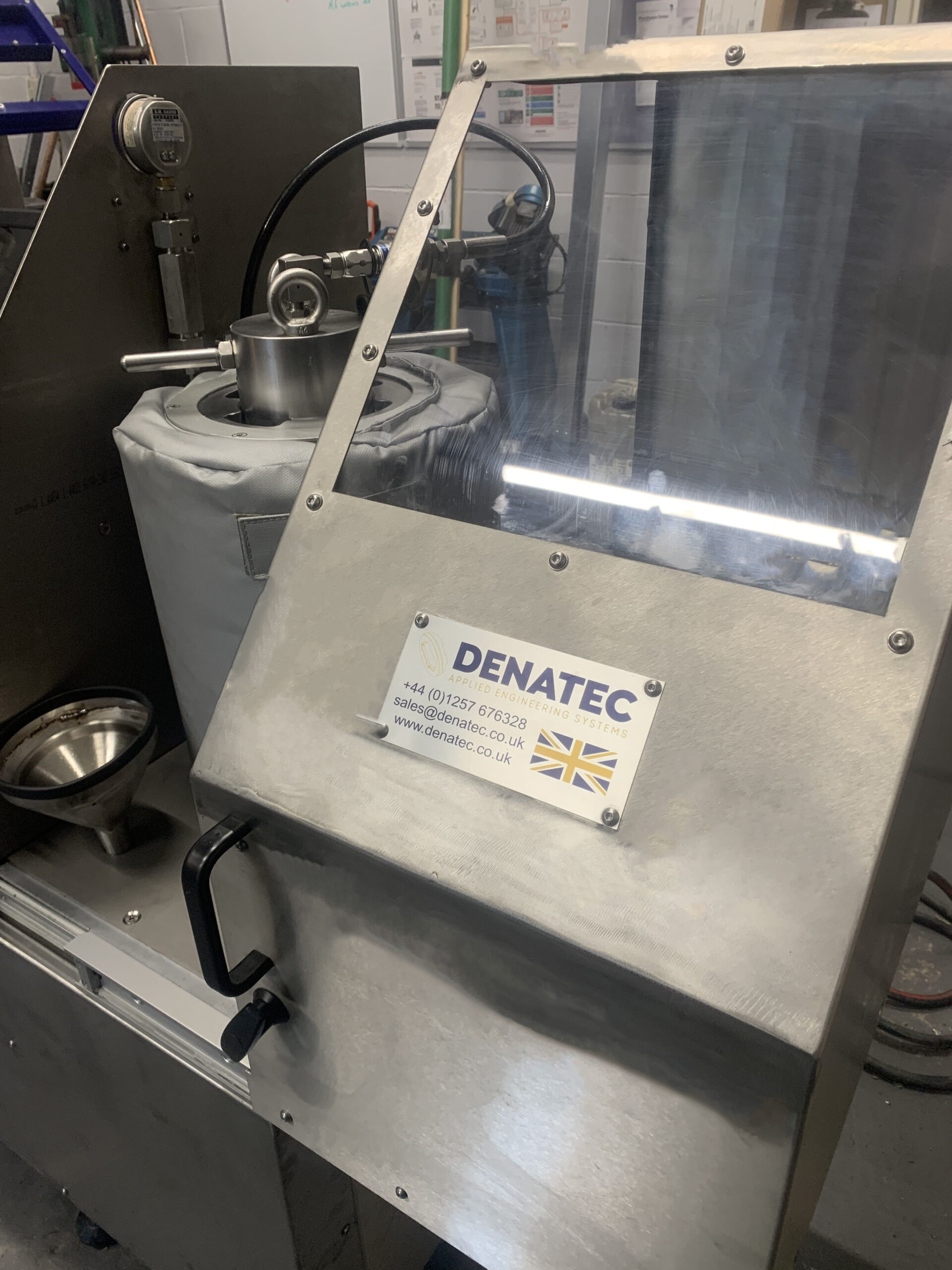

Stainless steel safety guarding with sliding access door
Improved H.P pipework with additional Pressure Relief Valve, H.P Quick Connect Coupling and new hydraulic hoses
Heat exchanger repair with additional insulation jacket
New L.P Pump and fluid filter replacement
Replacement Seal kits for both vessel and hydraulic actuation system
Improved Filtration System for macroparticle separation


Upon completion, the system was fully tested to its maximum operating limits and shipped to the customer.
